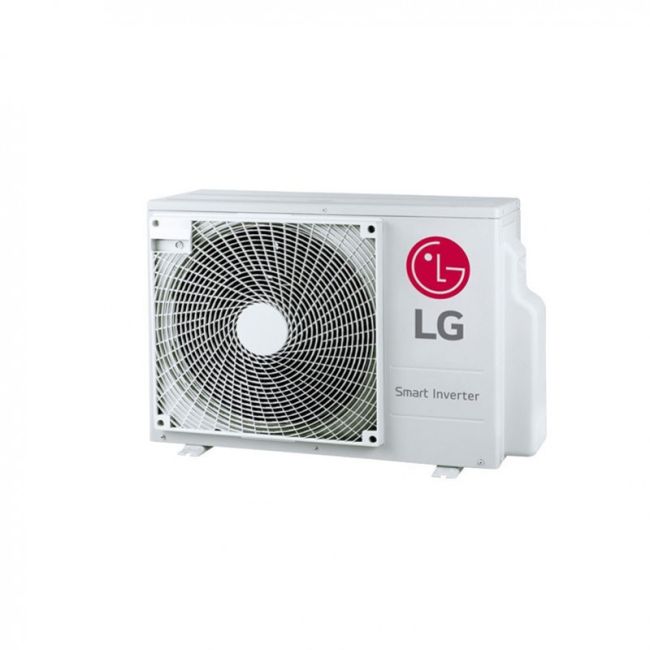

LG Multisplit Outdoor Unit Inverter MU2R17 16000 btu/h
5.070,00 Lei
SKU
MU2R17
Multi Split System
An LG Multi Split system is an advanced air conditioning system of superior quality that has the ability to operate at different temperatures and fan speeds in individual rooms. The multi split system can be made up of large indoor units for living areas and small indoor units for bedrooms, all operated from the one common outdoor unit.
Synchro operation
It offers very useful solution to customer with reasonable prices. It uses 2,3 or 4 indoor units with one outdoor unit. Each indoor units are running as one cycle with same mode (cooling or heating). It helps same air distribution all arround the middle or larger room (office or open places) even in irregualr shaped spaces.
The total capacity based on outdoor unit for Synchro operation are the same as for the fixed combinations.
|
|
Inverter TechnologyInverter technology refers to the compressor within the outdoor unit of the air conditioner. The two most common types of compressors are the fixed speed compressor and the inverter compressor. The fixed speed will run at 100% of its capacity and will stop and start automatically in order to maintain the desired temperature. An inverter compressor will vary its capacity in order to maintain a consistent temperature. |
Top Class COP
|
|
More EconomicalAn inverter's capacity will fluctuate in order to match the air conditioning requirements, so an inverter can be more energy efficient than a constant speed compressor. |
 |
More ComfortableWhen the air conditioner is initially activated to either heating or cooling, the compressor will operate at maximum speed to reach the desired temperature quickly. Once the desired temperature is achieved, unlike conventional air conditioners that turn the compressor on and off, LG inverter units adjust and constantly vary the compressor speed to maintain the desired temperature with minimal fluctuation to ensure that your comfort is not compromised. |
 |
More PowerfulWith a wider operation range for heating and cooling, the inverter is able to operate in even the most extreme outdoor temperatures. An inverter compressor can also operate faster than conventional air conditioners thus allowing the air conditioner to reach the set temperature faster and brings you comfort sooner. |
 |
Examples which can be mounted multi split
 |
 |
 |
Examples of internal models
- For Commercial Sites
 |
 |
 |
| 1-way Ceiling Cassette Type | 4-way Ceiling Cassette Type | Ceiling Concealed Duct Type (High Static) |
 |
 |
 |
| Ceiling Concealed Duct Type (Slim Duct) | Ceiling & Floor Type | Console Type |
- For Residential Sites
 |
 |
 |
| Art Cool Mirror | Art Cool Gallery | Wall Mounted Type |
| Model: | |
| Brand | LG |
| Product code | MU2R17 |
| Type | Outdoor unit |
| Power Class | 16000 |
| Cooling Capacity: | |
| Minimum | 3070 Btu/h |
| Standard | 16040 Btu/h |
| Maxim | 18420 Btu/h |
| Heating Capacity: | |
| Standard | 18080 Btu/h |
| Maxim | 19450 Btu/h |
| Power Input: | |
| Cooling | 200 / 1300 / 1700 W |
| Heating | 200 / 1300 / 1600 W |
| Running Current: | |
| Cooling | 1.1 / 5.6 / 7.9 A |
| Heating | 1.1 / 5.5 / 7.6 A |
| Energy Features: | |
| EER Btu/hr.W(W/W) | 3.75 |
| SEER | 7.80 |
| COP | 4.22 W/W |
| SCOP | 4.20 |
| Cooling Power Class | A++ |
| Heating Power Class | A+ |
| Power Supply | Single-phase |
| Compresor Type | inverter |
| Refrigerant Charge: | |
| Type | R32 |
| Air Flow Rate: | |
| Outdoor mc/min(CFM) | 50 |
| Sound Pressure Level: | |
| Outdoor | 63 dB(A) |
| Dimensions: | |
| Indoor | 770 x 545 x 288 mm |
| Net Weight: | |
| Outdoor | 36 kg |
| Indoor Unit Connectable: | |
| Number of Indoor Units | 2 buc |
| Piping connection for Outdoor Unit: | |
| Liquid | 6.35 mm (inch) |
| Gas | 9.52 mm (inch) |
| Manufacturer | LG |
|---|---|
| Warranty | 3 ani, 5 ani compresor |
| Type | 15000 Btu/h |
| Unit Type | Outdoor unit |
| Wi-Fi Control | No |
